Silver Spring 17ft Side-Entry L-Shaped Modular Ramp with 5ft Top Platform

$6,379.99
5-7 Day Lead Time
ITEM #17-552TP
Free Shipping
In Stock - Ready to Ship

The modular 17' Side-Entry L-Shaped Ramp with 5' Top Platform comes with all components for easy assembly and installation. Featuring an ADA-compliant design, the ramp assembles with either right- or left-side entry, depending on the configuration you need for your location. Offers accessibility at your fingertips, providing a smooth transition from the ground to your doorstep.

See More…

Features

Comes with everything you need

Our all-in-one mobility ramp solutions include all of the components for the ramp configuration of your choice. Every ramp section, handrails, platforms, support legs and any additional pieces. That means no extra trips to the hardware store and no online shopping for extra parts.

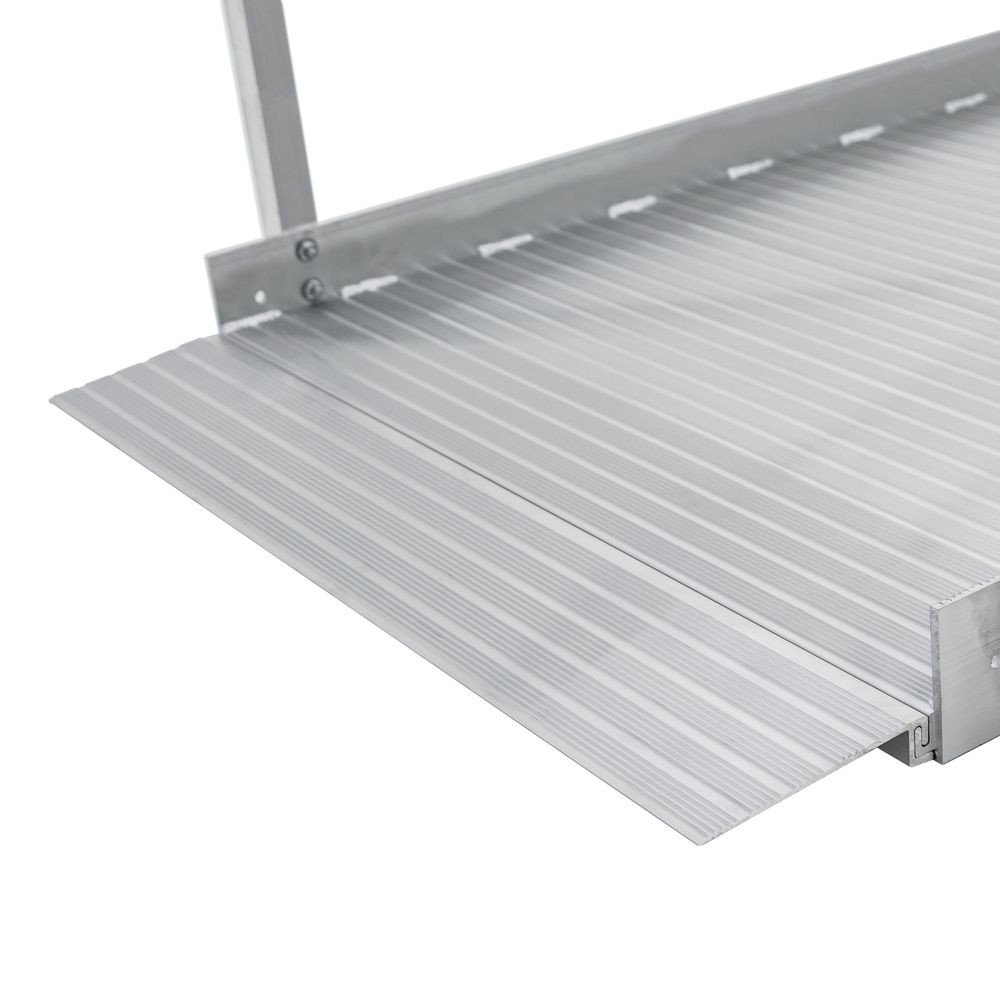

Lower ramp plate creates smooth ground-to-ramp transition

The extended aluminum plate ensures that wheels move between the ramp and the ground without jarring bumps or jolts.

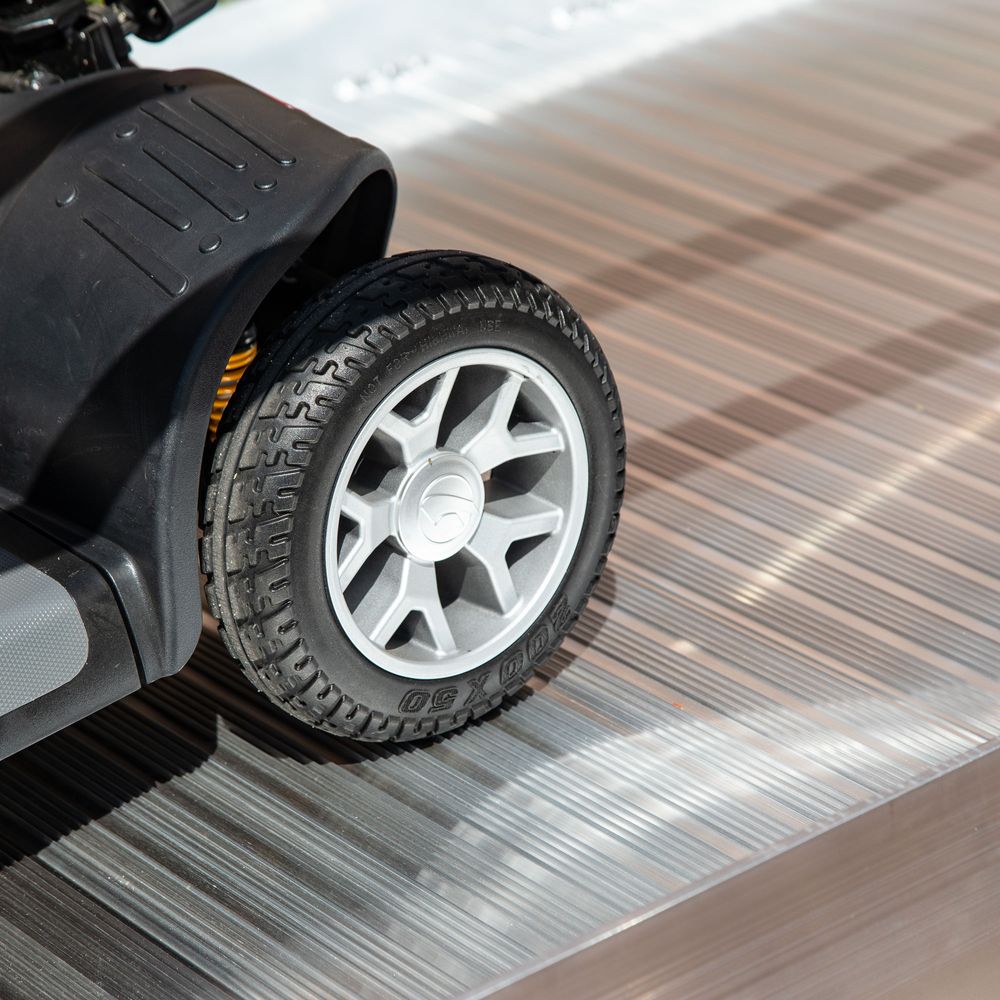

Extruded aluminum design with non-slip surface

Aluminum stays rust-free over time for a convenient low maintenance solution to your accessibility needs. The extruded surface has grooves that catch moisture and add traction for shoes or wheels.

Hook and tongue-and-groove installation creates stable connection points

When a platform is incorporated into the modular ramp design, simple J-hook and tongue-and-groove attachments make the task of assembling them much easier than having to fuss with packages of bolts and nuts.

Smooth, looped double handrails

Built to be versatile, the double handrails provide a lower bar for wheelchair users to grip if needed, as well as an upper bar for individuals who are walking independently or with a mobility device. At the end of the ramp, the handrail loops around on itself so that anyone sliding their hand along the top rail for support will not come to an abrupt stop or drop-off.

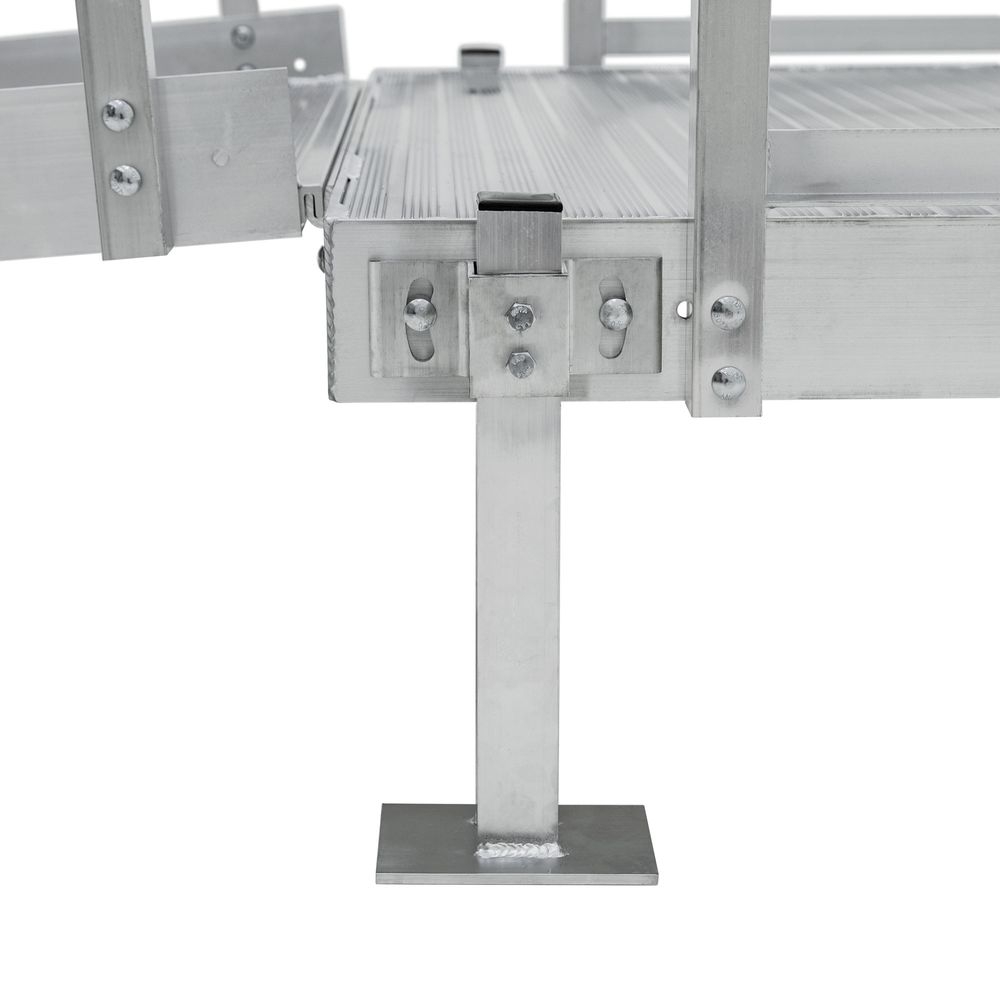

Legs position easily at the exact height you need for a 1:12 slope

The legs are designed to fit snugly into their bracket to set the ramp and/or platform exactly at the height needed for a 1:12 slope. The brackets tighten onto the leg to lock it into place, and the wide base prevents it from sinking into soft ground over time. Please note that legs should never be used to set ramp height higher than advertised, as this will compromise the safety design of the modular ramp and pose a risk of damage or injury.

Overview
Specifications
Made in the USA
Ramp Length:
17'
Ramp Width:
36"
Platform Length:
10'
Maximum Capacity:
850 lbs.
Material:
Aluminum
More Information

The modular 17' Side-Entry L-Shaped Ramp with 5' Top Platform comes with all components for easy assembly and installation. Featuring an ADA-compliant design, the ramp assembles with either right- or left-side entry, depending on the configuration you need for your location. Offers accessibility at your fingertips, providing a smooth transition from the ground to your doorstep.

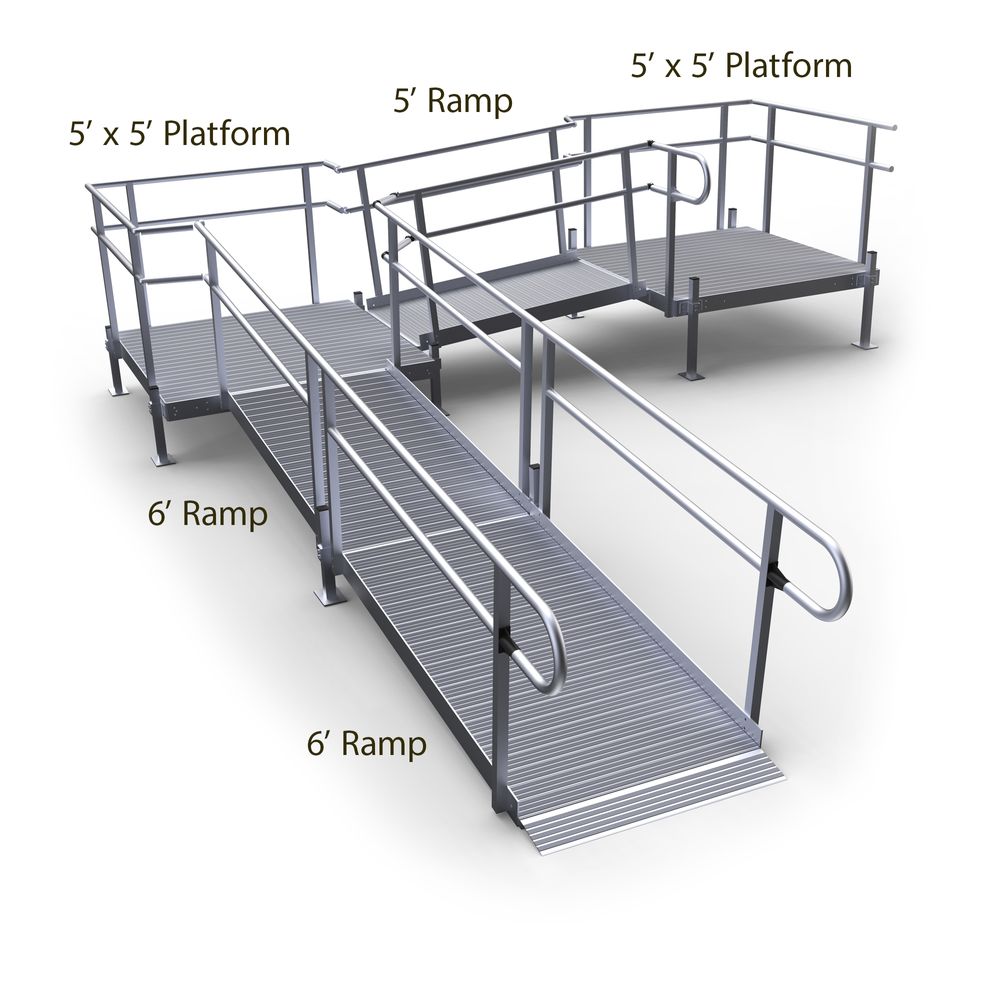

Featuring a 5' x 5' top platform, a 5' middle ramp, a 5' x 5' turning platform, and two 6' lower ramp sections with support stands. The lower ramp section installs on the turning platform on either the left or right side at 90-degrees from the lower ramp sections. Smooth, continuous handrails and a low gradient offer easy accessibility to your home, whether you're walking or using a wheelchair or other mobility device.

Featuring lightweight, durable and rustproof aluminum construction, this ramp supports up to 850 pounds. Its non-slip extruded surface has grooves that provide grip and stability for shoes and wheels for complete safety, regardless of the weather. All assembly components are included, and installation is easy with J-hook and tongue-and-groove connections.

This Mobility Mart product is backed by a 1 year warranty and is guaranteed to be free of defects at time of purchase.

Modular Ramp Sizes and Configurations Installation Manual
