How to Buy a Modular Wheelchair Ramp

04/21/2023

Mobility Mart offers several modular wheelchair ramp lines to provide you with a long ramp solution for your home or business. The online buying process might seem overwhelming at first, so we’ve created a simple step-by-step guide to help you understand your requirements, understand the options available to you, and plan out the ramp solution that will work for your location and needs.

Before you start

Understanding your space

Every entrance is unique, and it’s important to accurately measure how much space you have available for a ramp set up and will as how much ramp you will need to overcome the height of your step or steps. Our Wheelchair Ramp Calculator will provide you with the total ramp length your will need, then it will be up to you to determine if you a straight ramp will suffice, or if you require an L-shape or U-shape.

Understanding ADA compliance

Once you know the length of ramp you need, it’s important to understand how ADA regulations could affect your setup. To ensure that the ramp slope is appropriate for individuals with disabilities, our calculator provides you with the ADA-compliant 1:12 ratio. If you wish to create an L- or U-shape, ADA guidelines require platforms for resting and turning. If you want to use a series of straight ramps that total longer than 30 feet, ADA guidelines require a platform to break up the incline so that there are appropriate, flat rest areas to take a breather. Lastly, if the top of your ramp will sit right before a doorway or gate, a platform will be needed so that there is room to rest and maneuver while opening and closing the door or gate.

Ramps & Platforms

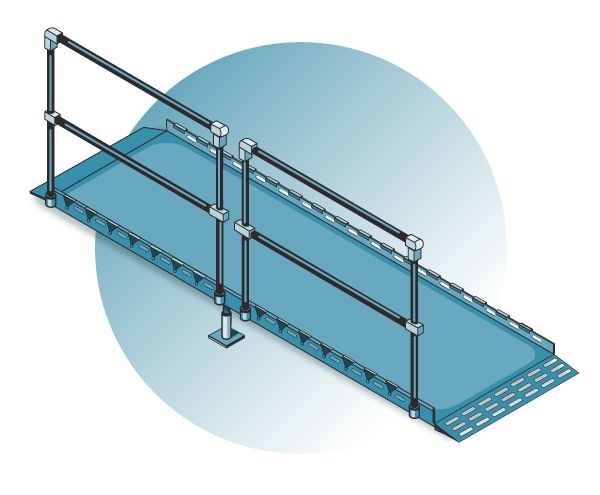

Straight Ramp

Straight ramps

The simplest of configurations, straight ramps are available in lengths for 8 feet (for an 8-inch rise) all the way up to 30 feet (for a 30-inch rise). If you are thinking about creating a straight ramp setup that is longer than 30 feet, you will need a platform for resting purposes.

L-Shape ramps

L-Shape ramps

Ideal for shorter spaces or hard-to-reach entryways, L-shape configurations can be set up in left or right directions. L-shape ramps will always require at least two ramps and at least one platform for resting and turning. If your rise is over 35 inches, you will also need leg support brackets to ensure that the platform is properly secure.

U-Shape ramps

U-Shape ramps

U-shape ramps great for compact spaces with rises of 20” or more. They can be set up in left or right directions, and will always require at least two ramps and at least two platforms to ensure plenty of room to rest and turn according to ADA guidelines. If you’re overcoming a rise that is greater than 35”, all platforms will require leg support brackets.

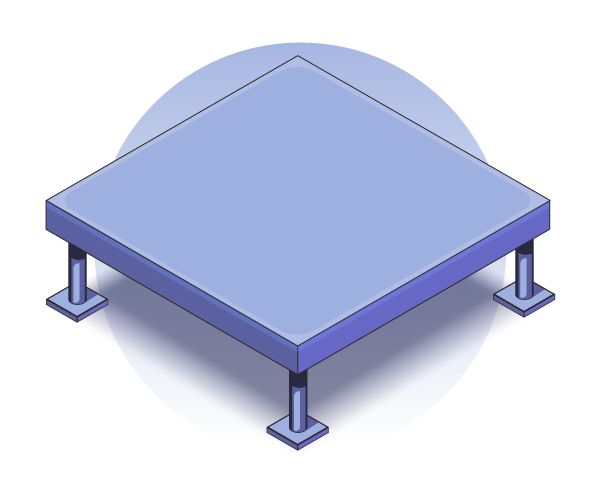

Platforms

Platforms

Available in 4-foot or 5-foot square sizes, platforms will be required for certain straight configurations, and required for L- and U-shape configurations. Straight ramps longer than 30 feet will require a platform for resting, L-shape ramps require one platform for the 90-degree turn, and U-shape platforms require at least two platforms to make the 180-degree turn. Platforms are also necessary if the top of the ramp will come into contact with a door or gate; the user will need a flat surface to rest and room to maneuver to open or close the door.

How to find the modular ramp you need

Step 1: Ramp Length

Calculate length you need and choose ramps. Decide on single, double or no handrails.

Step 2: Platform

Required for longer lengths, L and U shapes. Decide whether you need handrails.

Step 3: Leg Supports

Required for platforms if legs will be taller than 35”. Critical for extra-high applications.

Step 4: Summary

Review the sizes, pieces and number of pieces to make sure everything is correct.

Shop modular lines at Mobility Mart

Have questions about our modular ramp lines, or how to purchase? Please don’t hesitate to call us. Our knowledgeable staff would be happy to assist you with any information you require.
