Silver Spring Clearway 24' L-Shaped Modular Ramp with 4' Platform and Turn
$5,599.99
List Price: $5,999.99
Save $400.00
Key Features:
- Made in the USA
- 1,000 lb. Weight capacity; modular ramp package includes all components and accommodates slopes ranging from 1:6 to 1:14
- Non-slip surface for maximum performance in wet conditions
Frequently Bought Together
Accessories for Item #SSS24L44TT
Features
Configurable kits allow you to create exactly what you need
Because of the simple design, each ramp and platform can be moved or repositioned to create any number of configurations. The handrails are engineered to install in such a way that you can set up a straight, left or right entryway to your ramp. You can also install it without a platform, install it with one less ramp and more. It’s all possible with the configurability of the Silver Spring Modular Ramp System.
Ships with all the pieces - No additional ordering required
Unlike other manufacturers that require you to order multiple parts and hardware to customize your ramp, our Silver Spring system ships with every piece you need to install the ramp you need.
Height adjustable to create slopes from 1:6 up to 1:115
Set the height of each leg to exactly the slop requirements you need to safely get in and out of your home. Short on space? Set a slope height of 1:6 (6” of ramp for every 1” rise), to make the most of your space while still maintaining accessibility. Need a more gentle slope and have the space? This system can be built with up to 1:14 slope (14” of ramp for every 1” rise), which is gentler than the ADA compliant slope of 1:12.

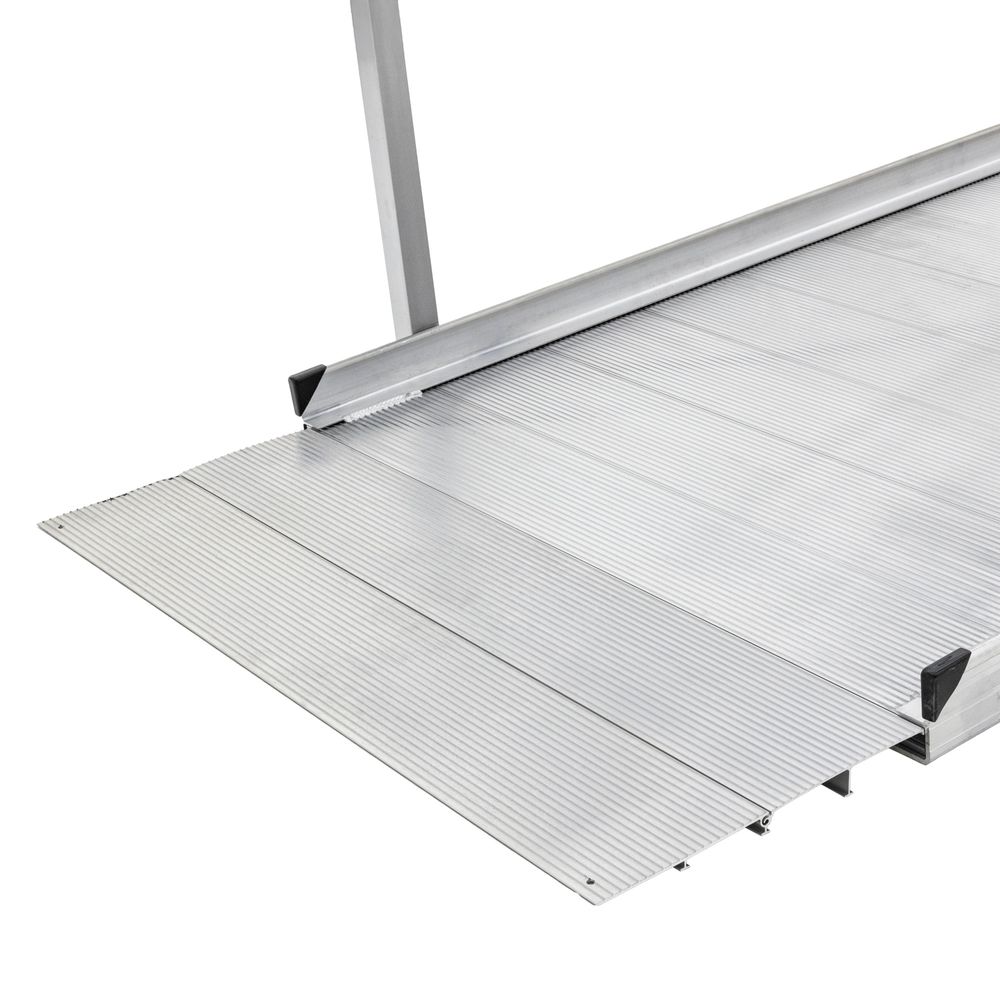

Lower ramp plate creates smooth ground-to-ramp transition
The extended aluminum plate ensures that wheels move between the ramp and the ground without jarring bumps or jolts.
Extruded aluminum design with non-slip surface
Aluminum stays rust-free over time for a convenient low maintenance solution to your accessibility needs. The extruded surface has grooves that catch moisture and add traction for shoes or wheels.
Wheelchair Ramp Calculator
Fill in the form to see the minimum ramp length you need.
Please enter Loading Height.
Overview
Overview
Specifications
Made in the USA
Description:
L-Shaped with 4' Platforms
Length:
23' 9"
Width:
178-19/50"
Ramp Length:
24'
Usable Width:
36"
Maximum Capacity:
1,000 lbs.
Weight:
540 lbs.
Brand:
More Information
Built for easy setup, the Silver Spring Clearway Modular Ramp System ships rapidly and assembles with fewer tools than other modular systems. Manufactured in the United States from high-strength, lightweight aluminum that will never rust or require painting, it includes everything you need for installation straight out of the box. Use it to overcome rises with a slope range from 1:6 to 1:14, perfect for home entryways and similar residential applications.

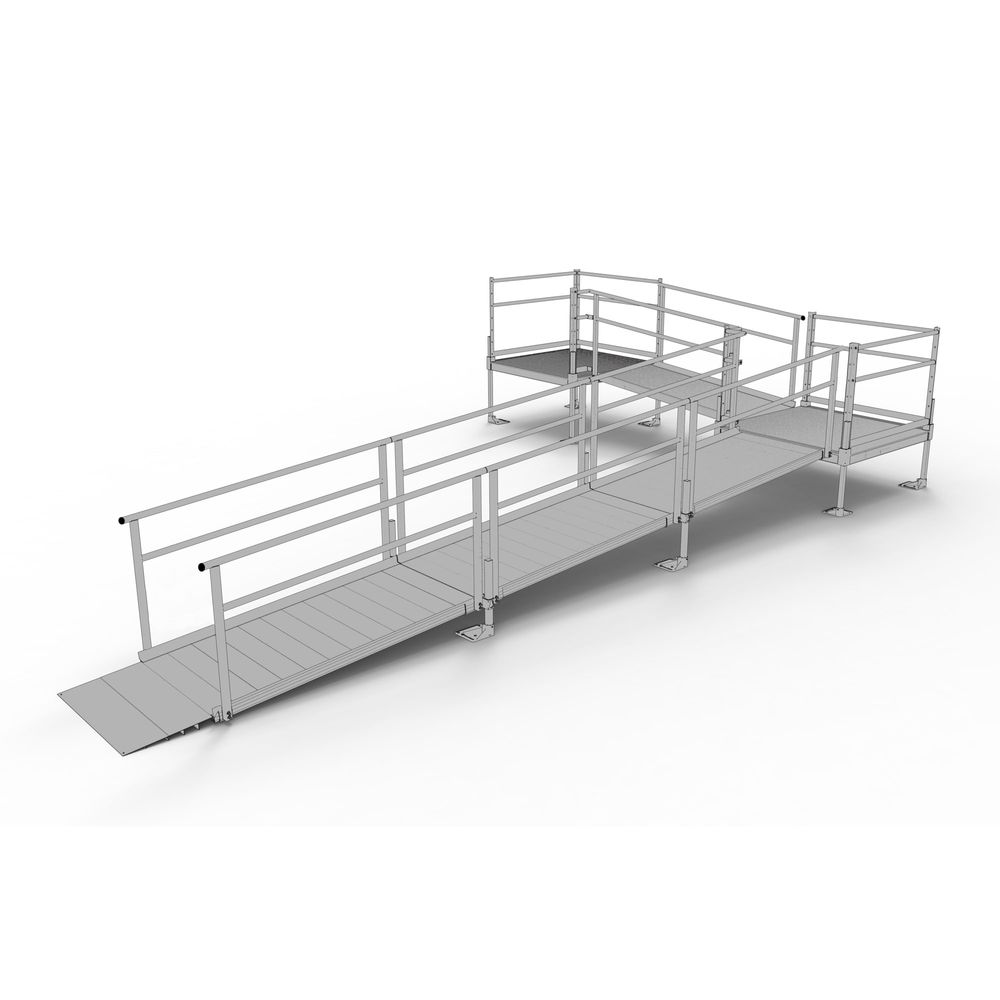

This ramp system includes one 4'x4' top platform, one 6' ramp, one 4'x4' turn platform, three 6' ramps, and accompanying handrails. During assembly, the handrails set up to accommodate a straight, left or right-side entry to the ramp. It supports up to 1,000 lbs., making it a sturdy choice for full-size scooters and/or bariatric use. The extruded tread surface features raised ribs that grip soles and tires with exceptional slip resistance.
The 4'x4' platform connects to the ramp with a tongue-and-groove design that requires minimal hardware to install. Durable plastic square feet (each 7.25” x 7.25”) feature two pre-drilled holes for easy mounting to any surface type (mounting hardware not included). The bottom plate moves freely to accommodate uneven surfaces and creates a smooth ground-to-ramp transition.
- Made in the USA
- 1,000 lb. Weight capacity; modular ramp package includes all components and accommodates slopes ranging from 1:6 to 1:14
- Non-slip surface for maximum performance in wet conditions
Usage Guidelines
Please note that handrail end loops are sold separately as an accessory addition. ADA Slope compliance is 1:12 or greater, please check with local law requirements if this system qualifies for ADA compliance when installed according to local regulations.
